Heavy-duty tube laser cutting technology

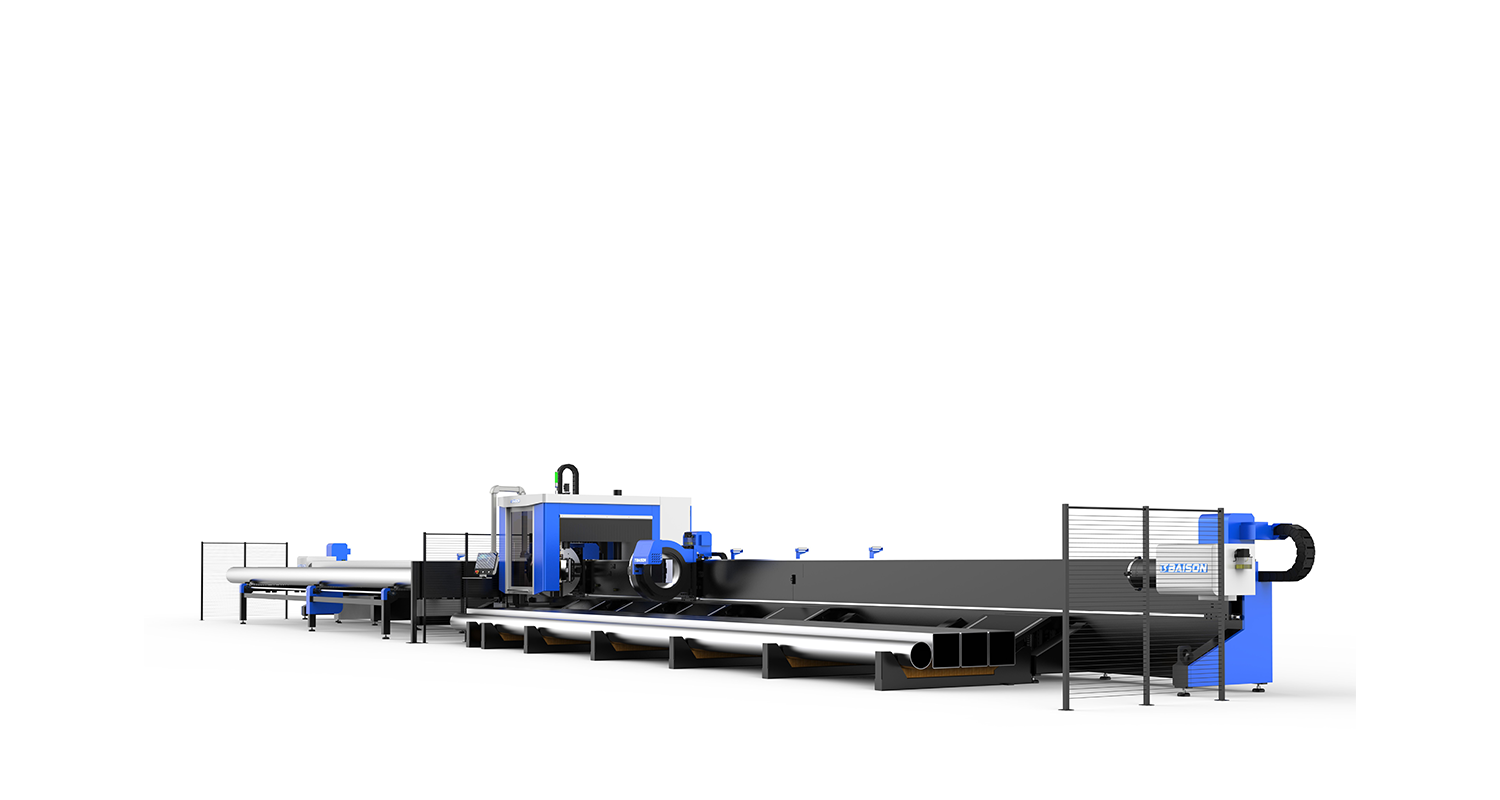

V Series – Heavy Duty Tube Cutting Fiber Laser
The Baison V Series Heavy Duty Tube Fiber Laser is a powerful and precision-driven solution designed for cutting large and thick-walled pipes with ease. With high laser power options and robust construction, it is built to handle demanding industrial applications across sectors such as construction, automotive, and heavy machinery. Engineered for stability and efficiency, the V Series delivers consistent, high-quality cuts on round, square, and complex tube profiles.
V Series Highlights
Cutting Speed: Up to 80m/min
Tube Diameter Capacity: 20mm – 360mm (See specs)
Laser Power: From 3000w to 12000w
Tube Types: Round, Square, Angle, I & H Beam, Custom

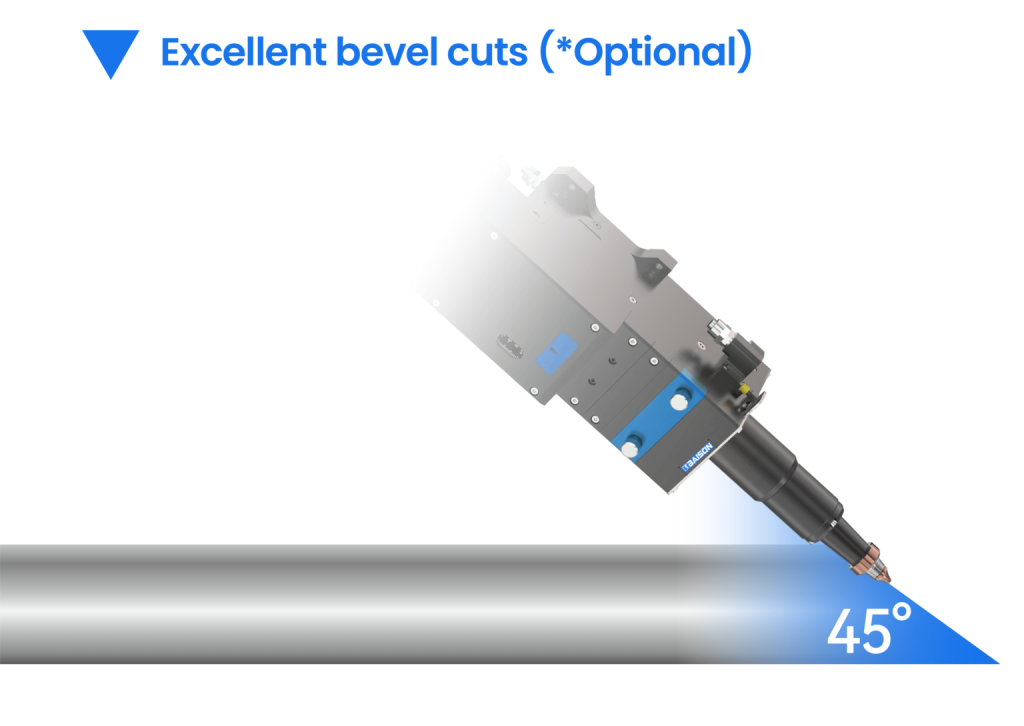

±45° Flexible Cutting (*Optional)
The V36 can achieve ±45° beveling on tube processing. This added convenience reduces costs for follow-up welding jobs.

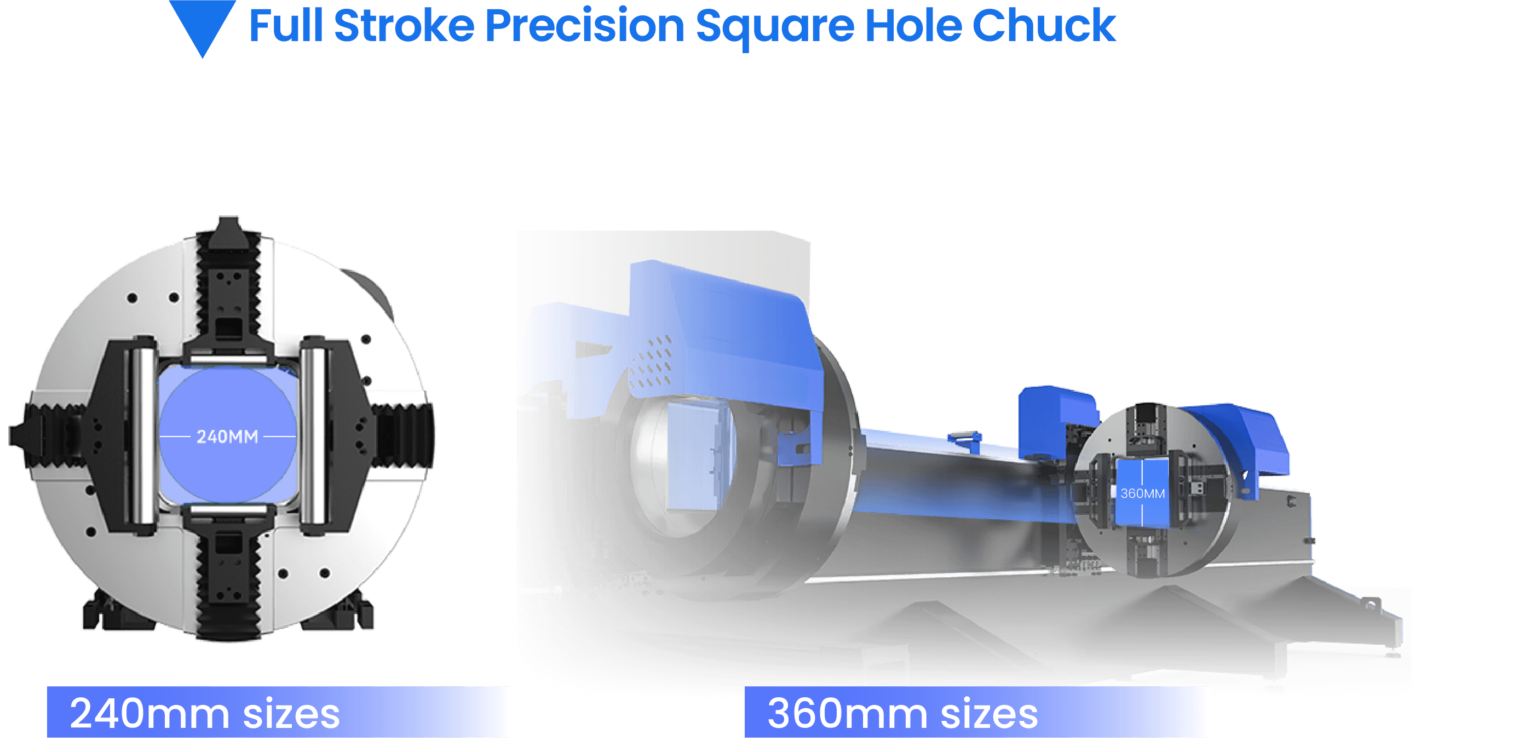

Full Stroke Precision Square Hole Chuck
Under the same chuck size specifications, it offers a broader clamping range, supports cutting of large diameter pipes, and easily processes special-shaped pipes, I-beams, H-beams, and other types of metal profiles.

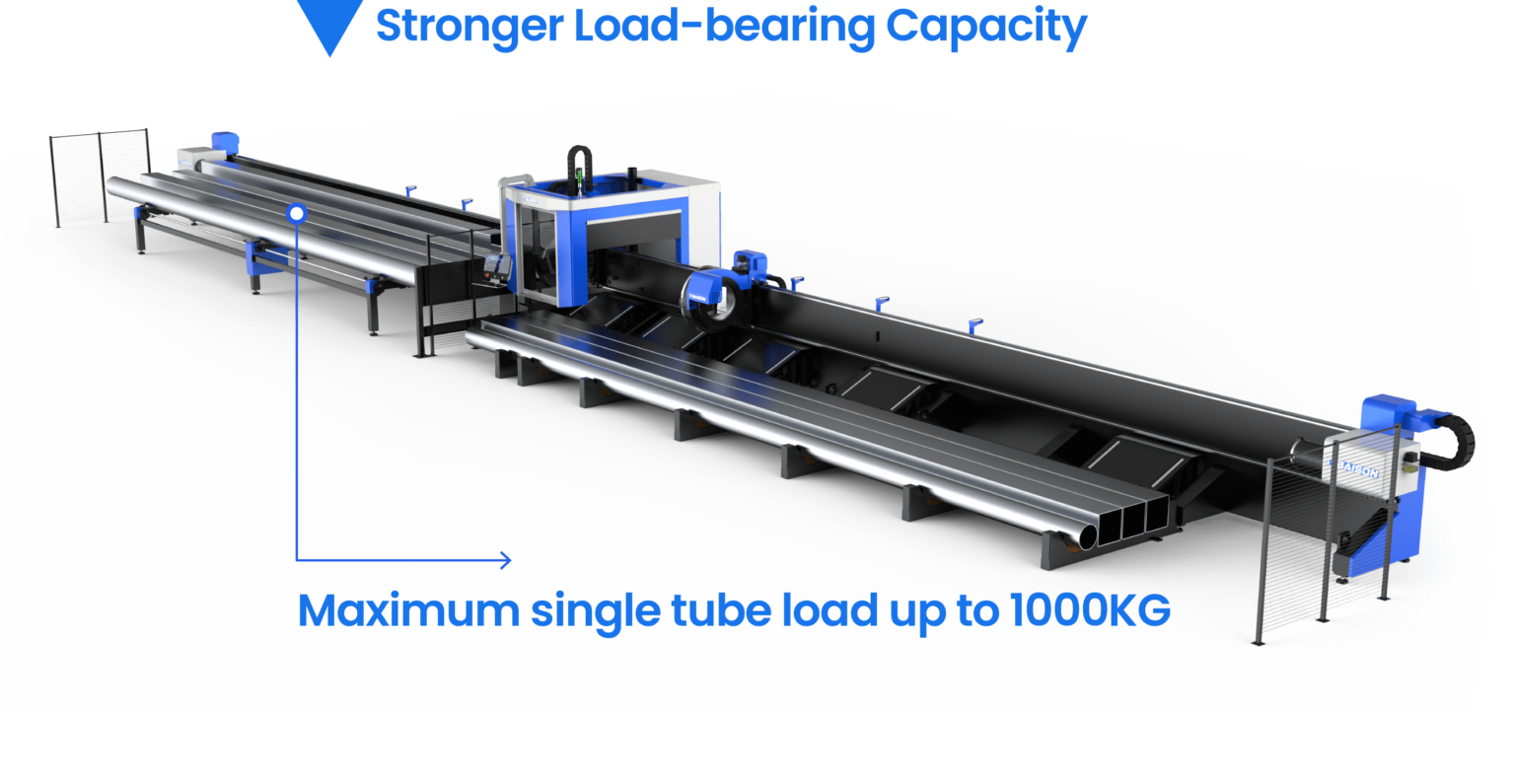

Stronger Load-bearing Capacity
The machine boasts a maximum single tube load-bearing capacity of up to 1000KG, ensuring more stable cutting of heavy-duty pipes and enhanced processing capabilities.

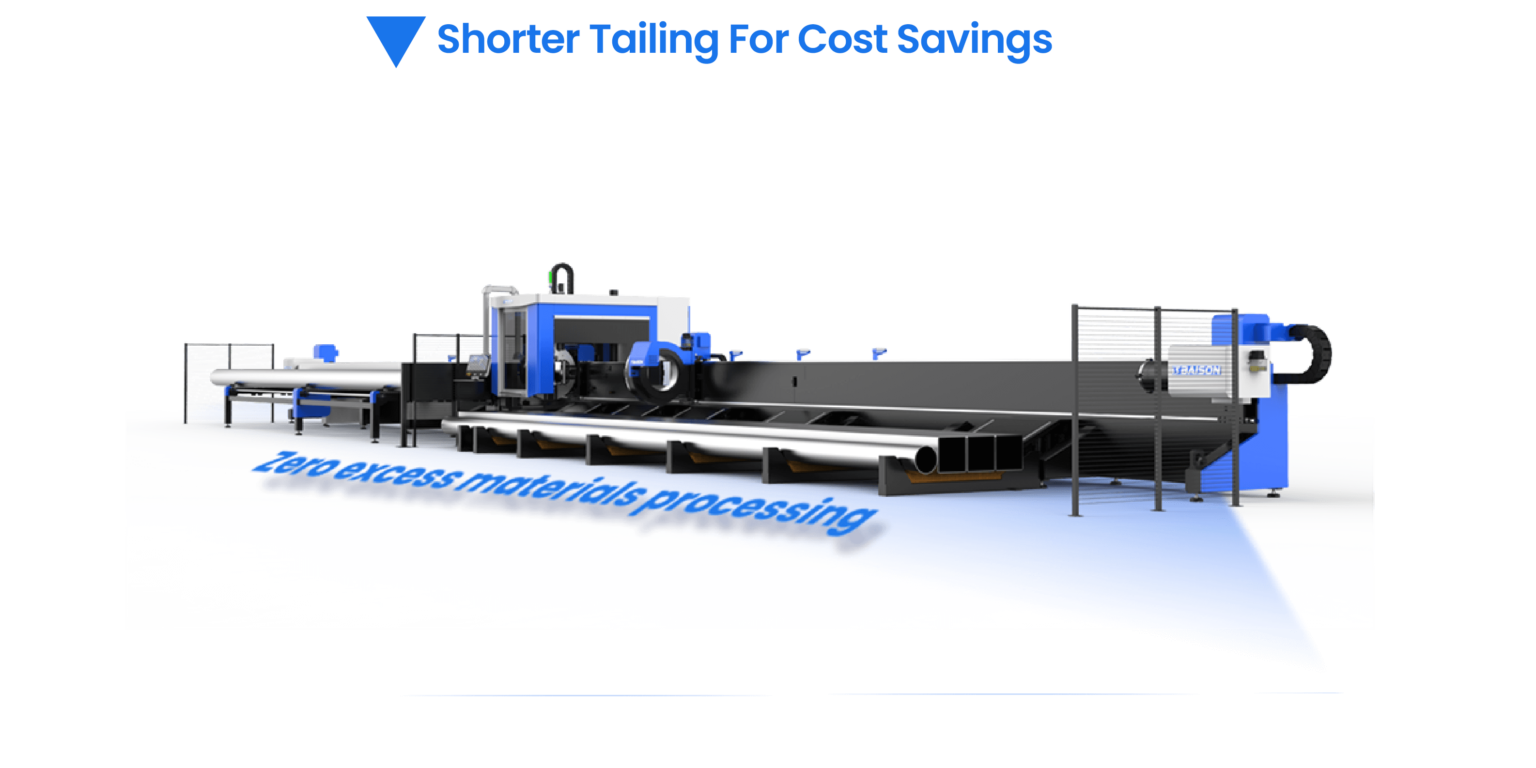

Shorter Tailing For Cost Savings
The standard inclusion of a chuck avoidance feature not only effectively protects the chuck but also maximizes the use of raw materials, thereby reducing production costs.

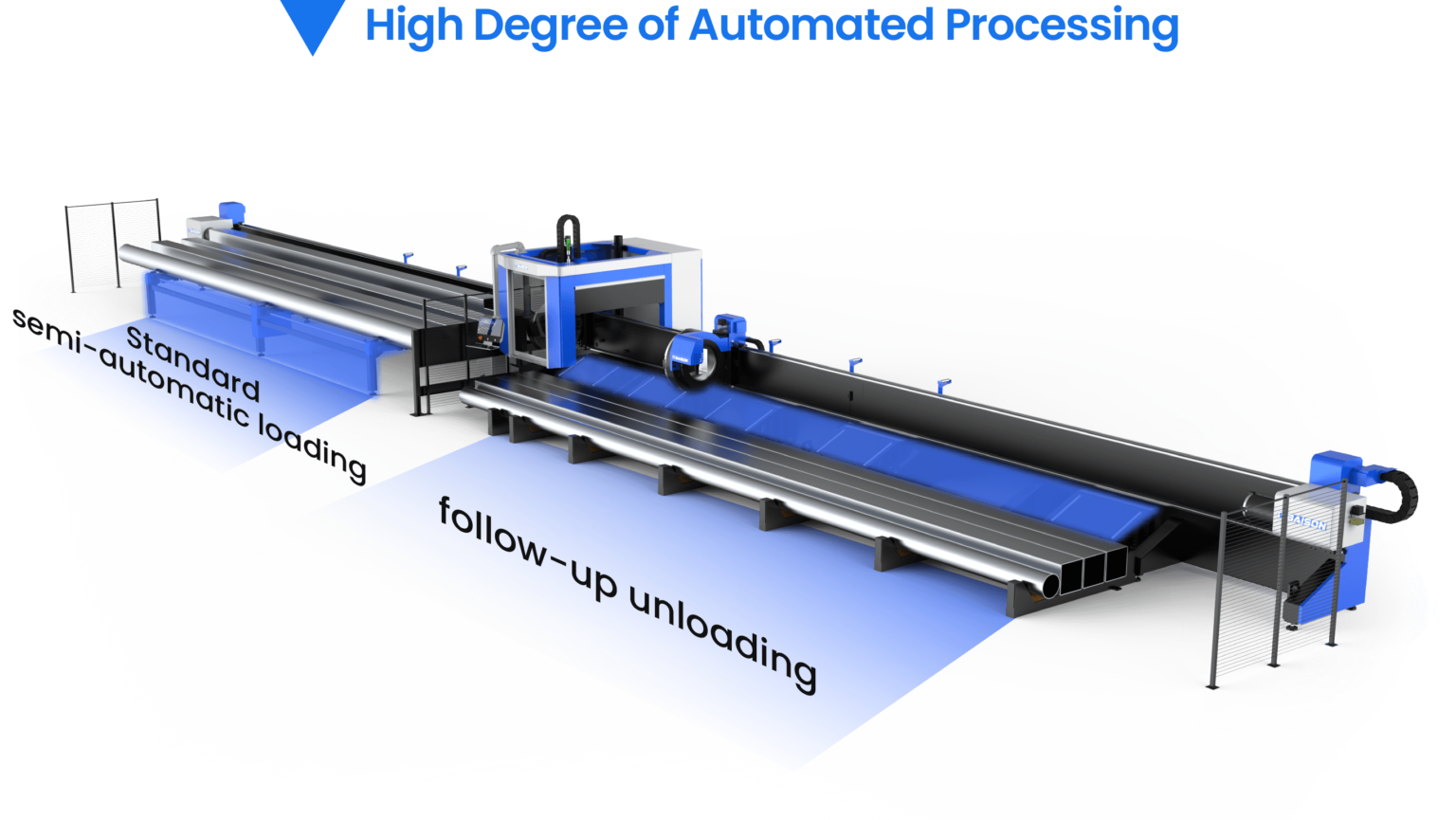

High Degree of Automated Processing
With a side-mounted bed frame, standard semi-automatic loading, and full-automatic unloading, the machine speeds up material handling and boosts batch processing efficiency.

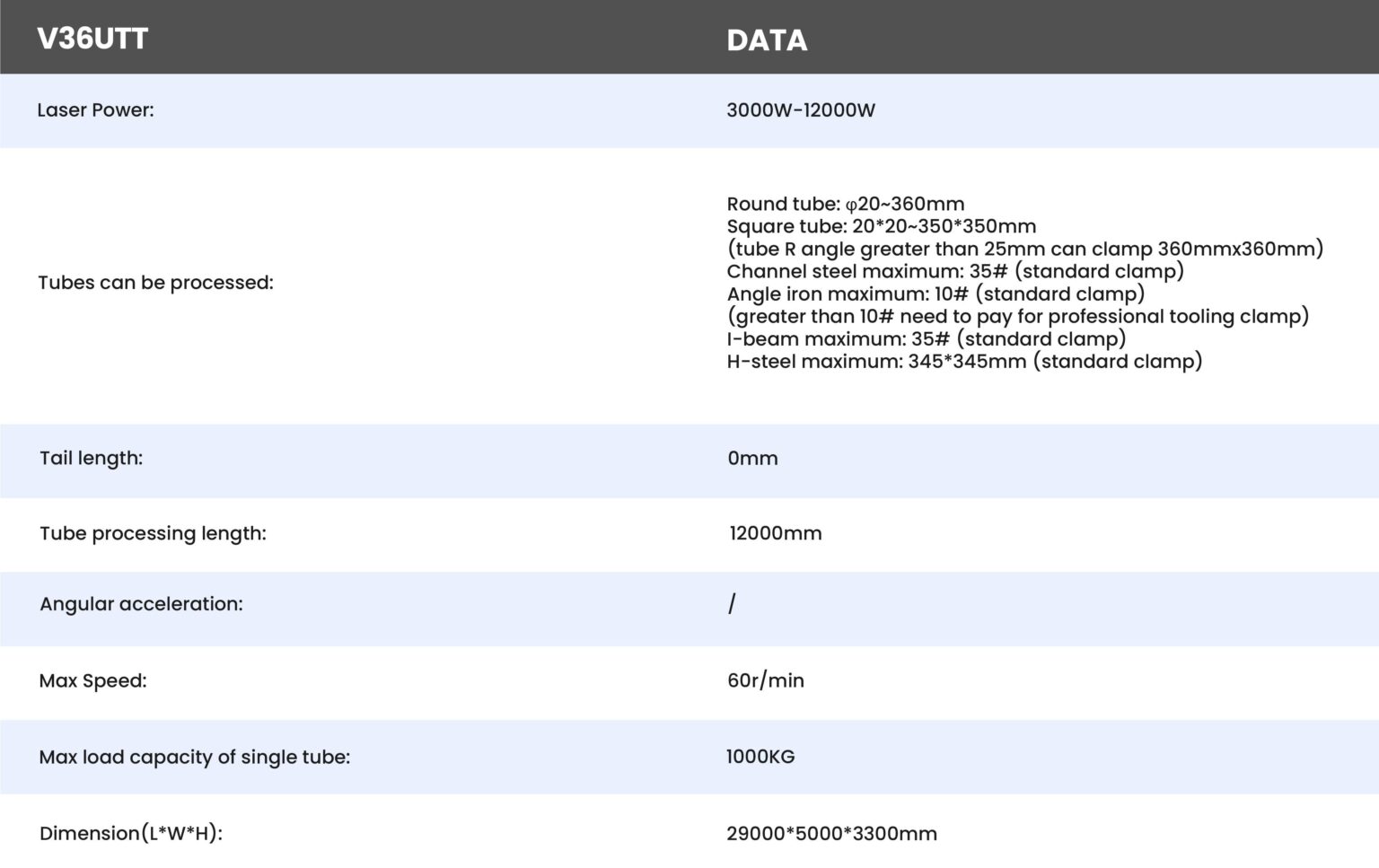

Technical Parameters
